Versatile space camera

Auricam has been designed to cover a wide range of missions, such as space surveillance and detection (SSA, SDA), in-orbit services, monitoring and navigation.

Compact and available off-the-shelf

Auricam has an optimal ratio between size, weight and power consumption (SWAP). Auricam is designed for a high production rate and therefore with a short delivery time.

Baffle and image

Thanks to its baffle, Auricam delivers an image with an optimal signal-to-noise ratio in all conditions and protects against stray light. With a resolution of 4 MPx, the image is in the visible range, available in black and white or color.

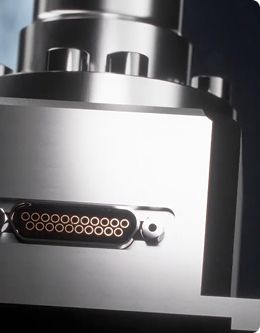

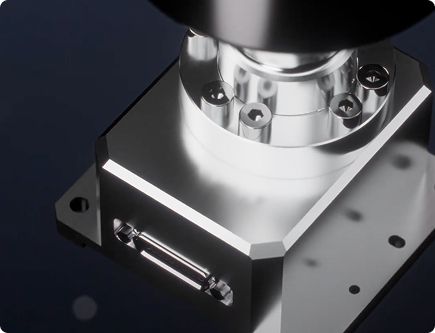

Optical Head and Electronic Unit

Several fields of view are available to meet all operational needs: 80°, 35° & 8°. An optional Electronic Unit allows the management of 2 cameras via a SpaceWire interface.

Main features D35
Main features D80
Main features D8

Main features D35

Field of view35° diagonal (25° square)
Size80 x 80 x 140 mm
Mass420g

Main features D80

Field of view80° diagonal (57° square)
Size90 x 90 x 150mm
Mass450g

Main features D8

Field of view8° diagonal (5,7° square)
Size71 x 65 x 155 mm
Mass< 550g

Options

Auricam numerical model - Software library

Enhance your simulation and validation workflow with our Camera Numerical Model. The AURICAM numerical model simulates realistic images, considering:
• All detector noises and sequencing effects ;
• Optical distortion ;
• Intra and inter pixel sensitivity ;
• Straylight effects ;
• PSF ;
• Protons.
The model includes a star catalog, into which you can input your 3D models.

Electronic ground support equipment

EGSE is available to drive Auricam for all your test needs.

Camera acceptance test plan

We can adapt Auricam Acceptance tests to best suit your specification – from minimum performance tests for optimal cost, to full environmental and performance characterization.

Technical support

Any questions about Camera use or performance ? Our experts are here to help ! We offer several support options:
• Remote technical support ;
• Mission-specific Radiation and Performance assessment ;
• Additional technical support on demand ;
• Customization.
Should you have any specific needs, we can help find the best cost-performance trade-off.

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performances

Our Other Ranges

Navigation cameras

For specific missions
Sodern designs cameras for all orbits, including highly complex environments exposed to radiation, stray light, and mechanical and thermal stresses. With more than 25 years of experience in space imaging, we have developed scientific cameras optimized for specialized missions, such as JUICE and MSR (Mars Sample Return).
