Neutron tubes & generators

For more than 60 years now, Sodern develops and manufactures neutron generators available to research
and industry. Neutron generators are renown for their reliability and cost-effective gestion.

Sodern's neutron generators combine high perfomances electronics with a neutron tube. Over 100 neutron tubes are produced each year, used in more than 40 countries around the world.

Applications of neutron technology

Reservoir monitoring for oil and gas

the neutron tube is used in various logging tools used to monitor oil extraction.

Bulk material analysis

material is carried on a conveyor belt which passes through a system equipped with a neutron tube. This type of system is used in cement plants, as well as coal, iron and nickel mines, etc.

Geochemical logging for mining

Used to measure boreholes to estimate resources before extraction and later provide grade control for material processing.

Nuclear waste reprocessing

Used to monitor correct reprocessing of nuclear waste.

Neutron tubes

 Product nameTypical emissionsLifetimeApplicationsLinked products
SODLL.pngSodilog LL5x107 n/s>13000 hoursMaterial analysisCNA
SOD.pngSodilog1.2x108 n/s>1000 hoursAnalysis/oil/researchFastGrade/Song150
SODPLUS.pngSodilog plus1.5x108 n/s>1000 hoursAnalysis/oil
SODNG.pngSodilog NG4x108 n/s>1000 hoursAnalysis/oil
TN36.pngTN362x109 n/s
Up to 1x1010 n/s
400 - 1500 hoursNuclear waste/researchGenie35

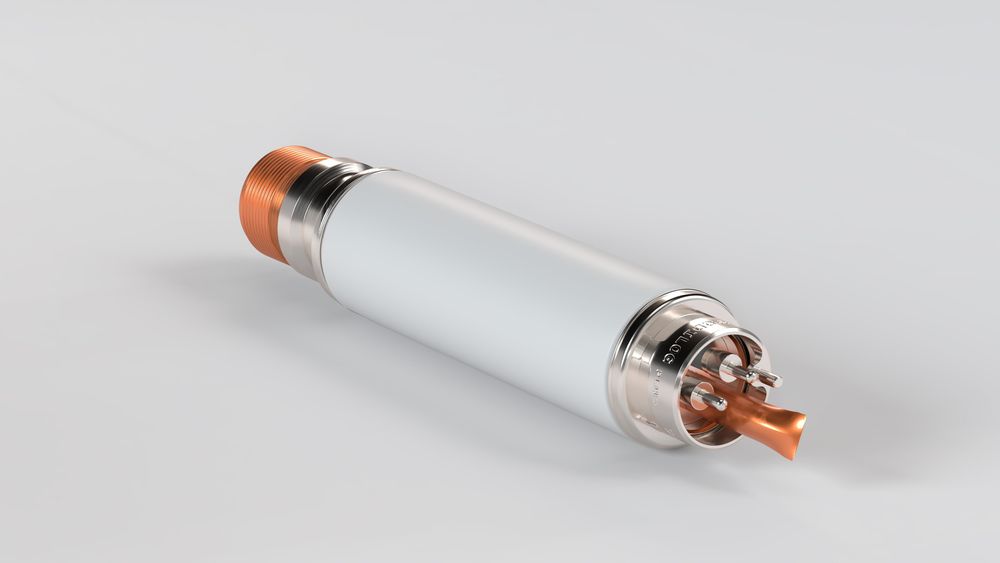

Sodilog plus

Sodilog plus

The Sodilog plus neutron tube is a metal ceramic vacuum-sealed component including an ion source, a target, and a gas replenisher/getter device.

  • Optimized ion source geometry
  • Zirconium hydride (Target & Replenisher)
  • Better reliability and extended lifetime
  • Reduced internal arcing effect
  • Extended temperature range
  • Compactness and shortened target distance

Neutron generators

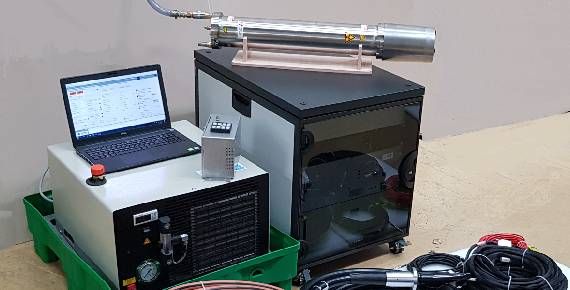

Générateur de neutrons Genie 35

Générateur de neutrons Genie 35

Le Genie 35 est un générateur de neutrons autonome haut flux. Il est composé d’un module d’émission neutronique, d’une armoire de contrôle et d’alimentation, d’un refroidisseur et d’un logiciel de pilotage et de sécurité. L’opérateur pourra choisir son mode d’émission (continue ou pulsée). Selon le besoin, le module d’émission est équipé soit d’un tube TN36 D-T (14 Mev)° ou d'un D-D (2.5 MeV).

Neutron generators - On demand

Neutron generators - On demand

With over 60 years of experience in neutron technology, Sodern's teams adapt to your needs, constraints and industrial specificities to design a customized neutron generator solution.

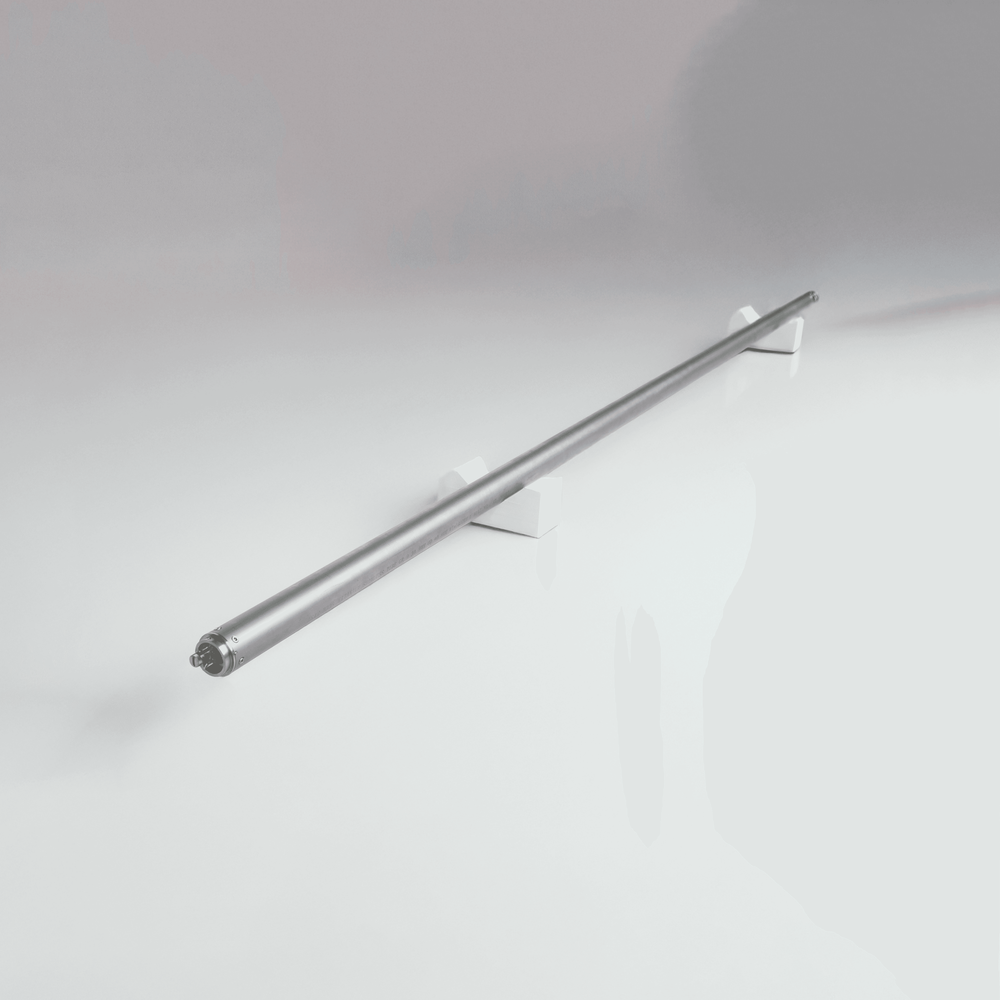

Song150 - Neutron emitting module

Song150 - Neutron emitting module

Song150 is a built-in neutron emitting module for pulsed neutron logging tool, consisting of one stainless steel housing with 14 MeV Sodilog sealed neutron tube, VHV power supply and a ion source pulser.

  • Lifetime of more than 1000 hours at nominal set point
  • Ruggedized design for 1’11/16 logging tool
  • Suitable for high-frequency pulsed emission (Sigma, C/O, ...)
  • Qualified for 150°C operation
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performances
