Compact, off-the-shelf star tracker

A readily available star tracker with a permanent stock of 200 units and a procurement lead-time of less than two weeks. Auriga™ delivers high performance at a competitive price.

Flight-proven since 2019

With more than 1,500 units launched and over 30 million hours in operation, Auriga™ boasts a 100% mission success rate.

Designed for constellations & New Space projects

Auriga™ is a compact, lightweight, and low-power star tracker combining robustness with outstanding performance.

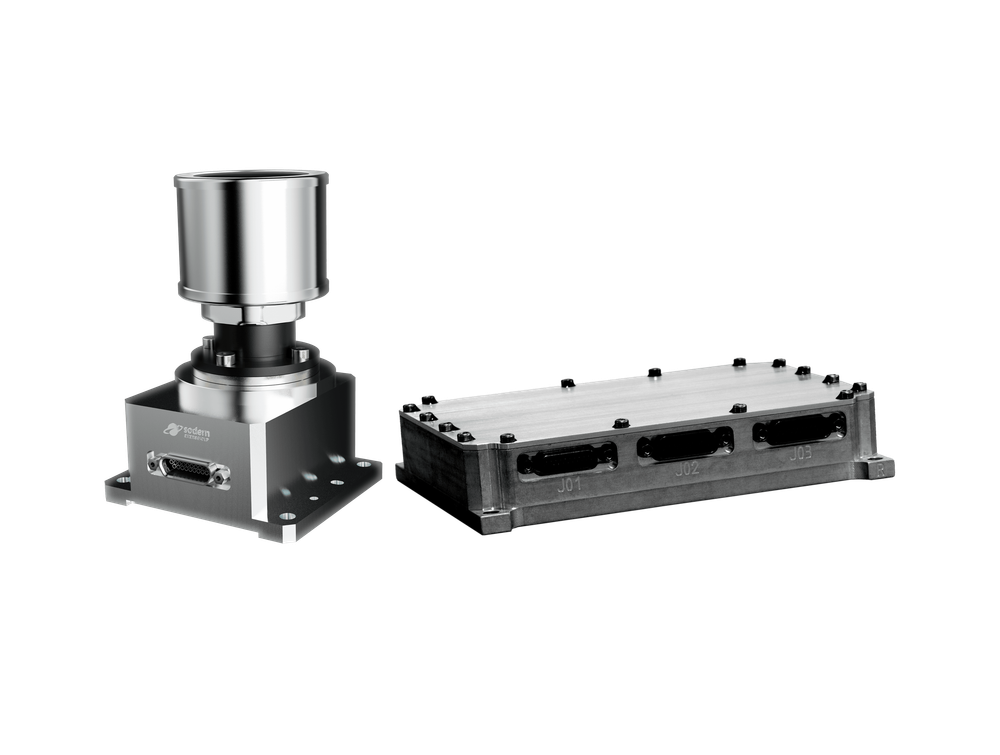

Optical Head, Baffle & Electronic Unit

Baffle options: available with a 35° or 26° sun exclusion angle. Available in a stand-alone version, with an electronic unit (EU) capable of controlling up to three optical heads (OHs), or in a centralized processing version.

Main features

Precision XY11 arcsec
Robustness (acquisition and tracking)≤1 deg/s | ≤3 deg/s
Robustness of Auriga™ Gyro option4 deg/s | 10 deg/s et 10 deg/s²
Lifetime in orbit10 years in LEO | 15 years in GEO

Our products

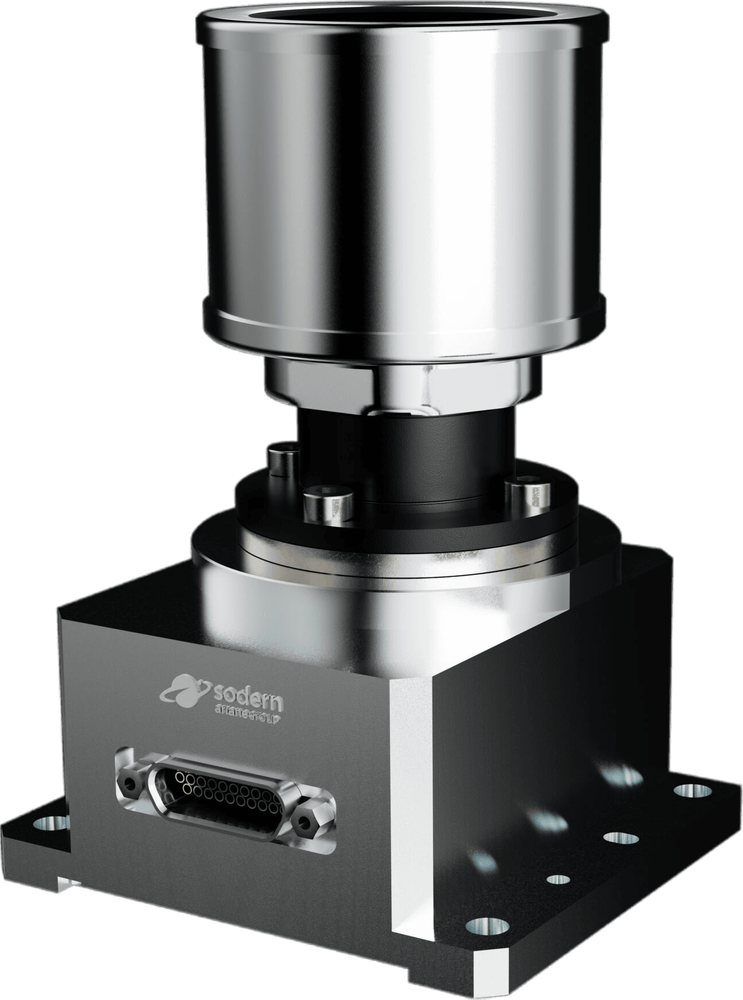

Auriga™ - Centralized version

Auriga™ - Centralized version

Star tracker's optical head with software hosted on the spacecraft's onboard computer.

  • Software is provided as a library compatible with the satellite's onboard computer (OBC)
  • Optical heads are connected to the satellite's OBC via a SpaceWire interface with power supply
  • Software operating frequency up to 10 Hz
Auriga™ - With Electronic Unit (Stand-Alone)

Auriga™ - With Electronic Unit (Stand-Alone)

  • Embedded software in the electronic unit processes data from the optical heads (OH) and calculates attitude
  • Electronic unit allows for field-of-view synchronization in a non-centralized architecture
  • Electronic unit refresh rate of 10 Hz

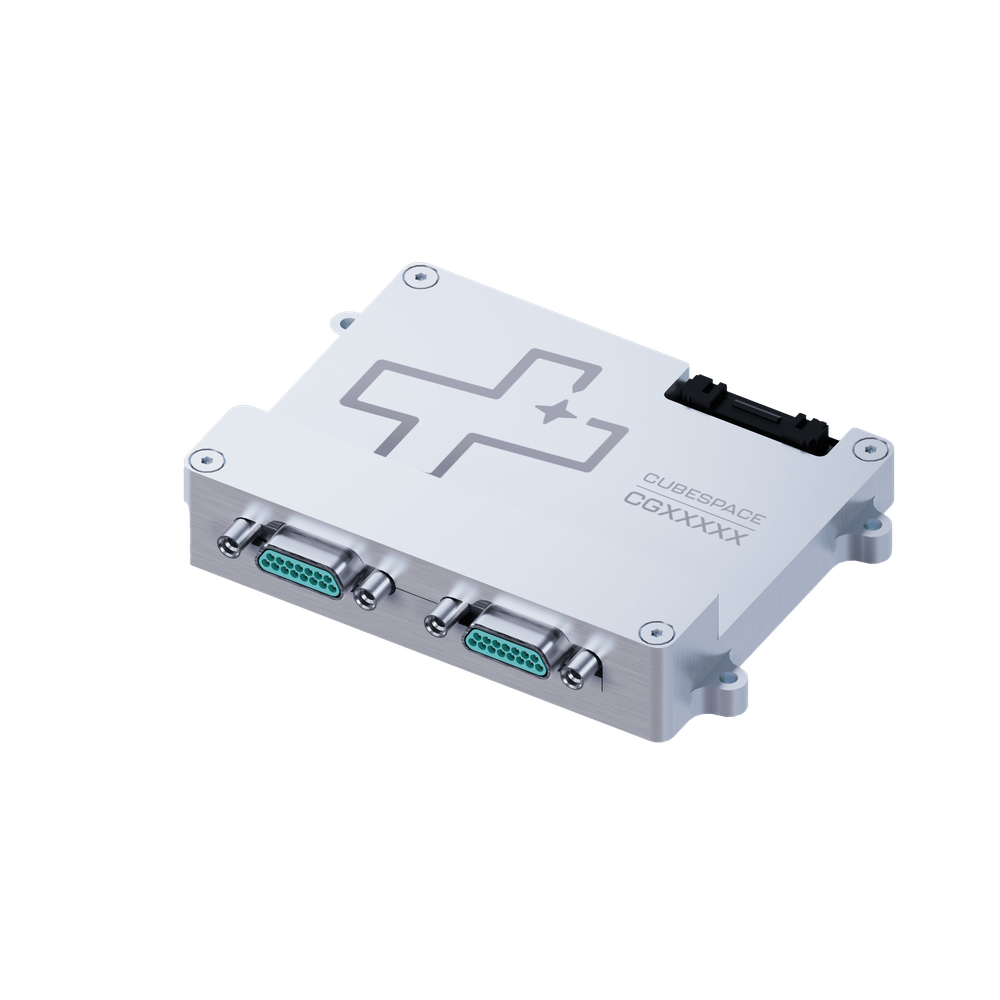

CubeAuriga - Processing Unit

CubeAuriga - Processing Unit

  • CubeAuriga est un partenariat avec CubeSpace.
  • L'unité centrale Auriga ne disposant pas de BUS scan, CubeAuriga permet d'interfacer jusqu'à deux têtes en spacewire au travers d'une interface CAN.

Options

Testing facilities and support

Sodern proposes a full set of Ground Support Equipment to support the integration and validation of Auriga™:

  • Auriga engineering model (optical head and electronic unit) ;
  • Star tracker numerical performance model ;
  • AurigaTM A-DEOS: dynamic optical stimulator for AOCS/STR system Functional Tests. HW in the Loop ;
  • AurigaTM STOS: static optical stimulator ;
  • EGSE for stand alone testing of star tracker.

Technical support

Any questions about Star Trackers use or performance ? Our experts are here to help ! We offer several technical support options:

  • Standard remote support packages ;
  • Training with our experts to become knowledgeable in our star tracker and GSEs, at Sodern site or at customer site ;
  • Mission-specific Radiation and Performance assessments (radiation, temperature, altitude, lifetime...).



+1500 Auriga™ in orbit

Mission Blue Ghost 1

SCIENCE2025
The mission aims to study the lunar surface in greater detail and prepare for future human interventions. Blue Ghost is equipped with two optical heads and one electronic unit of the Auriga™ star tracker.

Constellation EutelSat OneWeb

TELECOM2019
OneWeb constellation, equipped with Auriga™ star trackers, comprises 600 low-Earth orbit communications satellites. It will provide high-speed internet access to individuals.
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performances

Our Other Ranges

Hydra

A robust, modular star tracker
Hydra is a star tracker available in numerous versions, offering both modularity and high performances. With exceptional quality and resilience, Hydra is deployed on major institutional and scientific missions from several countries, as well as on telecommunications and observation satellites across all orbits.
Hydra

Horus

Single box star tracker
Horus is an autonomous and robust star tracker that leverages innovative technologies to deliver high performances and competitiveness in applications requiring a single field of view. Horus has notably been selected for use on telecommunications platforms developed by leading satellite manufacturers.
Horus
